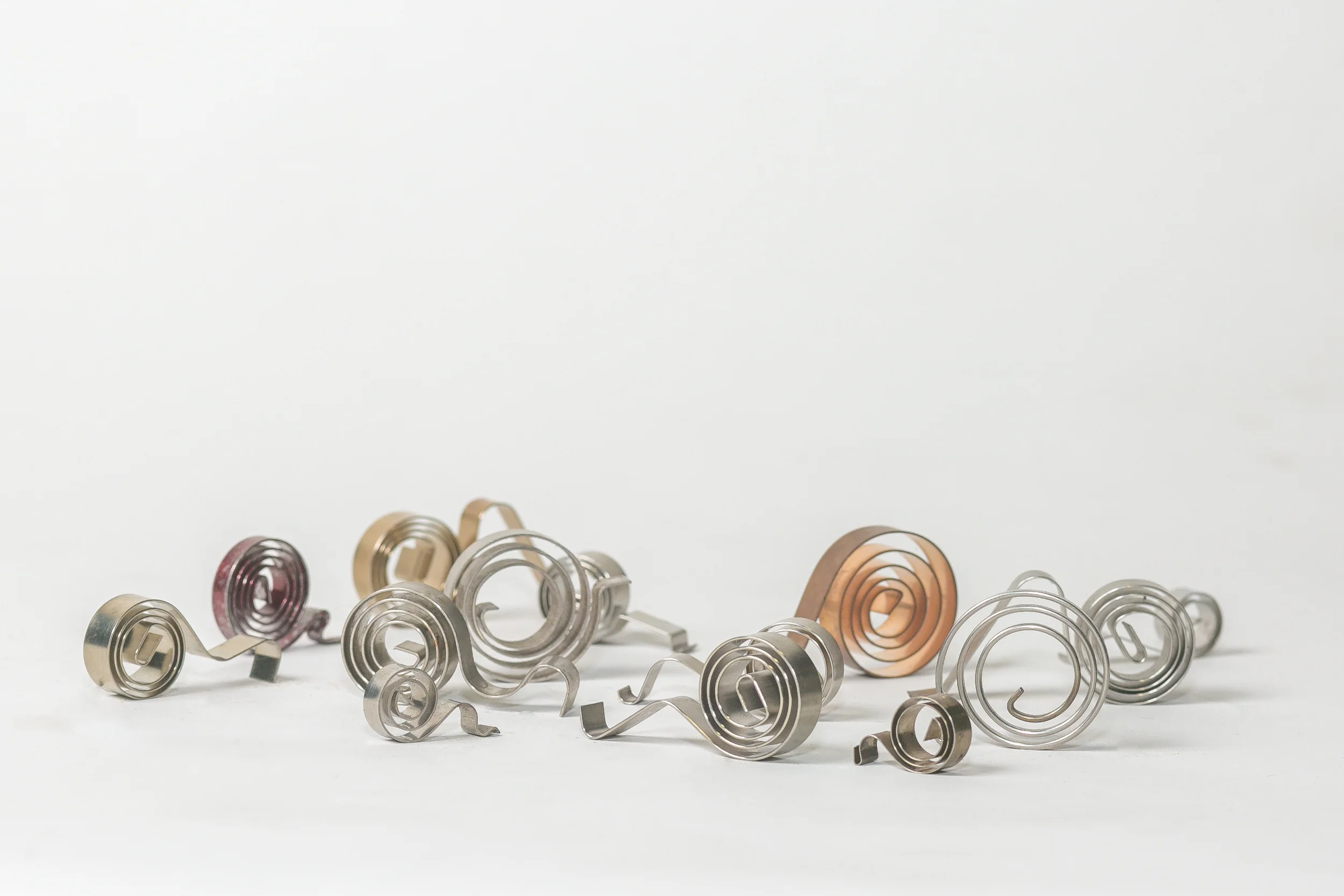

Description:

• Operates over 90° of revolution or slightly more than 90°
• Has fixed space between coils
• Has an even spiral form
• Angular position of inside and outside ends are usually fixed
• Outside diameter of spring is usually smaller than 1.5”

Size Ranges:

Most of the springs we make fall into these general guidelines, however, there are always exceptions. Call us with your requirements and we can design a spring to fit your application.

• From .003” to .062” Thick
• From .062” to 1.00” Width

Types of Materials Commonly Used:

• High Carbon Spring Steel (1075-1095)
• Stainless Steel

End Uses:

Electric motors

Tooling:

We have a complete tool room with equipment capabilities to fabricate the tools required for the manufacturing of springs, stampings and wire forms.
